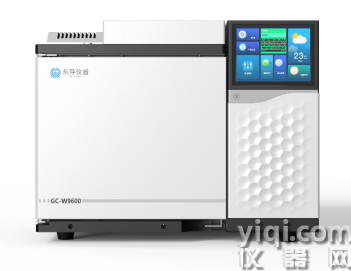

GC-W9600氣相色譜儀

GC-W9600氣相色譜儀

 智慧系列氣相色譜儀GC-W9600氣相色譜儀系統，LED八寸觸摸屏顯示，物聯網多維色譜系統，兼顧了在線與實驗室儀器的功能項的快速切換。智慧新算法EPC壓力控制系統，擴展了與MS間的無縫連接技術。內置智能互聯功能，可控儀器的運行狀態，提高了儀器的可操控性能。升級了EPC 功能。彩色觸摸顯示屏可訪問氣相色譜設定值、狀態信息、配置等信息。儀器的整體性能更為智能化、便捷化。提高了儀器的簡易化、一鍵式的操作模式，更為智能化、小型化、模塊化。本儀器的應用行業為：高校、科研院所、質檢、環境檢測、石油化工、食品安全、等領域的定性、定量分析檢測。

儀器特點：

? 內置一鍵式出廠調試功能

? 智能化程序升溫控制系統

? 物聯網數據處理系統

? 儀器操作界面智能科學，具有中、英文雙操作系統（自選）；

? 采用彩色八寸LED屏設計、操控方便、界面清晰；

? 采用10/100M自適應以太網通信接口，內置IP協議棧，便于LIMS系統的互聯及管理；

? 內部設計智能互聯系統，可分級對儀器進行監控及實時數據的查詢；

? 獨立開發的DOTHUNET工作站，支持多臺色譜儀（300臺）同時工作，實現數據處理以及反控，達到了業界領先的水平；

? DOTHUNET工作站內建的Modbus/TCP服務器，可以方便地使分析結果接入DCS（集散控制系統）；

? 集成模塊化結構設計，升級便捷化，維修成本低?？蛇x配多種高性能檢測器，如FID、TCD、ECD、FPD，PFPD和NPD等；

? ECD檢測器具有國家批準的生產豁免權。自主研發，高靈敏度構造設計；

? 氣體流量控制運用了EPC技術，自動化智能設置，精度更高，誤差小，適合于各類在線分析控制技術；

? FID檢測器實現了自動點火、熄火重 點、自動開啟氣路，達到了智慧化控制模式；

? 系統設計默許外置進樣前處理裝置，多型號的外置氣體、流體進樣系統（頂空、氣體進樣器、熱解析儀等外設）

? 主要技術指標 屏面顯示：八寸LED屏 溫控區域：8路

? 溫控范圍：室溫以上5℃～450℃，增量：1℃，精度：±0.01℃ 程序升溫階數：32階/33平臺

?  程升速率：0.1～40℃/min（普通型）；0.1～60℃/min（高速型） 外部事件：8路  進樣器種類：填充柱進樣、毛細管進樣

? ●檢測器數目：3個（最多）；FID、TCD、ECD、FPD，NPD，PDHID任選●氣路控制： EPC方式 EPC工作模式：恒溫，恒壓，程序升壓，程序升流  EPC量程：壓力：0～0.6MPa；流量0～100mL/min或0～500mL/min（空氣）

?  EPC、EFC工作氣體：氮氣、氫氣、空氣、氦氣、氬氣

?  EPC、EFC程升：4階

?  EPC、EFC控制精度：壓力0.01KPa；流量0.01 mL/min；

?  壓力傳感器：         準確度：滿量程的<±2%         重現性：<±0.05 KPa         溫度系數：<±0.01 KPa/°C流量傳感器：         準確度：滿量程的<±5%          重現性：<±0.5%(滿量程)          量程：0～500mL/min  啟動進樣：手動、自動兩類模式通信接口：以太網

?  電源：220V±10%,50Hz；2500W（最 大）體積：a×b×cmm重量：50kg（約）

? 軟件

? 原裝配套軟件，全自動儀器及附件控制，數據采集和分析，多重任務，鼠標操作，自動設定菜單數據和校正方法，自動優化操作參數，自檢和自診斷功能

檢測器技術指標：

氫火焰離子化檢測器（FID）

?  檢測限：Mt≤3×10-12g/s （正十六烷-異辛烷溶液）；

?  噪音：≤5×10-14A

?  漂移：≤1×10-13A/30min

?  線性范圍： ≥106

熱導檢測器（TCD）：

?  靈敏度：S≥3500mV?ml/mg（常規）5000mV?ml/mg（高靈敏）(苯-甲苯溶液)（放大2、4、8倍任選）

?  噪聲：≤10μV

?  基線漂移：≤30μV/30min

?  線性范圍：≥104

電子捕獲檢測器(ECD)：

?  檢測限：≤1×10-14g/s

?  噪聲：≤0.03mV

?  基線漂移：≤0.2mV/30min

?  線性范圍：≥103

?  放射源：63Ni

火焰光度檢測器(FPD)：

?  檢測限：(S)≤5×10-11g/s ,(P)≤1×10-12g/s；

?  噪聲：≤0.03mV

?  基線漂移：≤0.2mV/30min

?  線性范圍：≥103（S）,102（P）

外置閥系統

? 可按系統配置數個控制閥

?  可配置數位控制閥

自動進樣器

? 自動識別流體多位自動進樣器（限制型）

? 任意型號的外置氣體、流體進樣系統（頂空、氣體進樣器、熱解析儀，吹掃捕集等）

數據通訊

? 以太網（LAN）

? 串接口RS-232

? 串接口RS-485

? 在線遠程控制系統數傳

? MS無縫連接

    GC-W9600 Gas Chromatograph

【Application】

2 The GC-W9600 Gas Chromatograph System from the Wisdom Series features an LED 8-inch touchscreen display, an IoT multi-dimensional chromatography system, and quick switching between online and laboratory instrument functions. The intelligent EPC pressure control system with new algorithms expands seamless connection technology with MS. It includes built-in smart interconnection functionality to control the instrument's operating status and enhance its operability. The EPC function has been upgraded. The color touchscreen can access gas chromatography settings, status information, configurations, and more. The overall performance of the instrument is more intelligent and user-friendly. It simplifies operations with a one-click mode, making it more intelligent, compact, and modular. This instrument is applicable in industries such as universities, research institutes, quality inspection, environmental testing, petrochemicals, food safety, and other fields for qualitative and quantitative analysis and testing.

2

2 【Features】

2 Built-in one-click factory debugging function

2 Intelligent program temperature control system

2 Internet of Things (IoT) data processing system

2 Smart scientific interface with options for both Chinese and English operating systems

2 Designed with a color eight-inch LED screen, easy to operate with a clear interface

2 -Equipped with a 10/100M adaptive Ethernet communication interface, built-in IP protocol stack, facilitating interconnection and management with LIMS systems

2  Internal intelligent interconnection system allows for graded monitoring and real-time data queries of the instrument

2 Independently developed DOTHUNET workstation supports simultaneous operation of multiple chromatographs (up to 300 units), achieving data processing and reverse control, reaching industry-leading levels

2 The DOTHUNET workstation's built-in Modbus/TCP server makes it easy to integrate analysis results into DCS (Distributed Control System)

2 Modular integrated structure design for convenient upgrades and lower maintenance costs. Various high-performance detectors can be optionally equipped, such as FID, TCD, ECD, FPD, PFPD, and NPD

2 ECD detector has a national approved production exemption. Self-developed with high sensitivity design

2 Gas flow control uses EPC technology, automated intelligent settings, higher precision, smaller error, suitable for various online analysis and control technologies

2 FID detector achieves automatic ignition, extinguishing focus, and automatic gas path opening, reaching a smart control mode

2 System design defaults to an external sample pre-processing device, with multiple models of external gas and fluid sampling systems (such as headspace, gas sampler, thermal desorber, etc.)

【Specification】

2 Temperature control zones: 8 channels, variable frequency motor system, temperature control range: 5°C to 450°C above room temperature, increment: 1°C, accuracy: ±0.01°C, program temperature ramp steps: 32 steps/33 platforms.

2 Number of detectors: 3 (maximum); options include FID, TCD, ECD, FPD, NPD, PDHID.

2 Gas control: EPC mode

EPC working modes: Constant temperature, constant pressure, program pressure ramp, program flow ramp.

EPC range: Pressure: 0 to 100 psi; pressure control accuracy: 0.001 psi; flow rate: 0 to 100 mL/min or 0 to 500 mL/min (air).

2 Detector specifications:

2 Data communication: Ethernet (LAN), RS-232 serial interface, online remote control system data transmission, seamless connection with MS (Mass Spectrometry).

【Application Fields】

The GC-W9600 Gas Chromatograph has a relatively wide range of applications, including in universities, research institutions, quality inspection, environmental testing, petrochemicals, food safety, and other fields for qualitative and quantitative analysis and testing.
