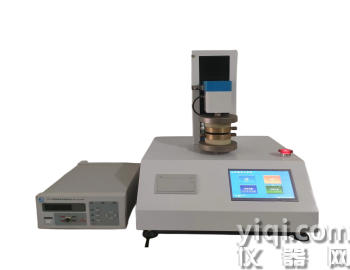

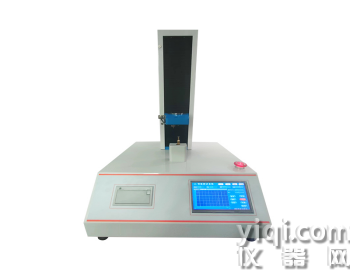

HP603Single particle compressive strength tester

Single particle compressive strength tester, also known as particle compressive strength tester or single particle crystal compressive strength tester, is suitable for testing the compressive strength of particles such as diamond, superhard materials, abrasive single particles, cubic boron nitride abrasive, diamond, plastic particles, rubber, seeds, cat litter, pellets, etc. It can also be used for testing the compressive strength of tobacco seed coatings, various particle compressive strength tests, and anti crushing force tests.

1、 Technical characteristics of single particle compressive strength tester:

1. The touch screen display displays real-time force values, displacement deformations, and automatically saves the maximum value of the current test; The display interface can display the test curve in real time; Test real-time parameters such as speed and deformation.

2. Using a high-precision, fully digital speed control system and precision reducer, the precision screw pair is driven for testing, achieving a wide range of adjustment of the test speed and smooth operation.

3. Adopting high-precision sensors and professional measurement and control software, with high testing accuracy, wide testing range, and simple operation.

4. The test speed and return speed can be set separately; At the end of the experiment, it will automatically return to its initial position.

5. Equipped with a standard micro printer, it can print results at any time and can calculate multiple test results, maximum, minimum, and average values.

6. Segmented speed control during the experimental process: The speed of the indenter before and after contact with the specimen is independently controlled to ensure accurate experimental results and high experimental efficiency.

2、 Technical parameters of single particle compressive strength tester:

1. Range: 500N (single arm 100N 200N 1000N 2000N 5000N)

2. Resolution: 0.01N

3. Accuracy ± 0.1N

4. Testing method: rupture test

5. Speed: 1-500mm/min can be set arbitrarily

6. Error: ± 0.1 mm/S

7. Host size: 540 * 280 * 1250mm

8. Power supply: AC 220V ± 22V, 50Hz

9. Weight: approximately 55Kg
